“Ideally one would desire an indefinitely large memory capacity such that any particular… word would be immediately available… We are… forced to recognize the possibility of constructing a hierarchy of memories each of which has greater capacity than the preceding but which is less quickly accessible.”

– A. W. Burks, H. H. Goldstine, and J. von Neumann, Preliminary Discussion of the Logical Design of an Electronic Computing Instrument (1946).

In this post, I summarize the second half of Chapter 2—Memory Hierarchy Design—from Computer Architecture: A Quantitative Approach by Patterson and Hennessy.

Ten Advanced Optimizations of Cache Performance

Improving cache performance is a critical part of system design, especially for modern processors. Cache optimization techniques can be broadly understood through three core metrics:

• Hit time: The time it takes to access data from the cache.

• Miss rate: The fraction of memory accesses that result in a cache miss.

• Miss penalty: The additional time required to service a miss by fetching data from a lower level of the memory hierarchy.

Five main categories of optimization strategies:

Type#1. Reducing Hit Time

To minimize the latency of cache hits, designers often employ strategies such as:

• Using small and simple first-level caches: Smaller caches can be accessed more quickly, which reduces the time needed to complete a hit.

• Way prediction: This technique guesses which cache way is likely to hold the data, enabling faster access by speculatively reading that way first.

Type#2. Increasing Cache Bandwidth

To allow more parallel cache accesses and avoid bottlenecks:

• Pipelined caches allow overlapping of cache operations across stages, improving throughput.

• Multibanked caches divide the cache into independently accessible banks, enabling multiple simultaneous accesses.

• Nonblocking caches support hits even while other miss-handling operations are in progress, increasing overall concurrency.

Type#3. Reducing Miss Penalty

To reduce the time penalty of a cache miss:

• Critical-word-first fetch strategies prioritize transferring the requested word first, so the processor can continue while the rest of the block is still being fetched.

• Merging write buffers combine writes to the same memory address, reducing memory traffic and improving efficiency during store misses.

Type#4. Reducing Miss Rate

Reducing how often misses occur can be achieved not only through hardware but also via software:

• Compiler optimizations such as loop interchange, blocking, and data layout transformations help improve data locality and reduce cache misses at runtime.

Type#5. Reducing Miss Penalty or Miss Rate via Parallelism

Both miss rate and miss penalty can benefit from parallelism:

• Hardware prefetching predicts and fetches data before it’s requested, reducing perceived miss latency.

• Compiler prefetching inserts instructions ahead of time to pre-load likely-needed data into the cache.

By understanding and strategically applying these techniques, system architects can significantly improve the performance and efficiency of modern memory hierarchies.

Below are ten key strategies used to enhance cache performance across various processor designs. The content blends narrative explanations and structured bullet points to make it easy to follow.

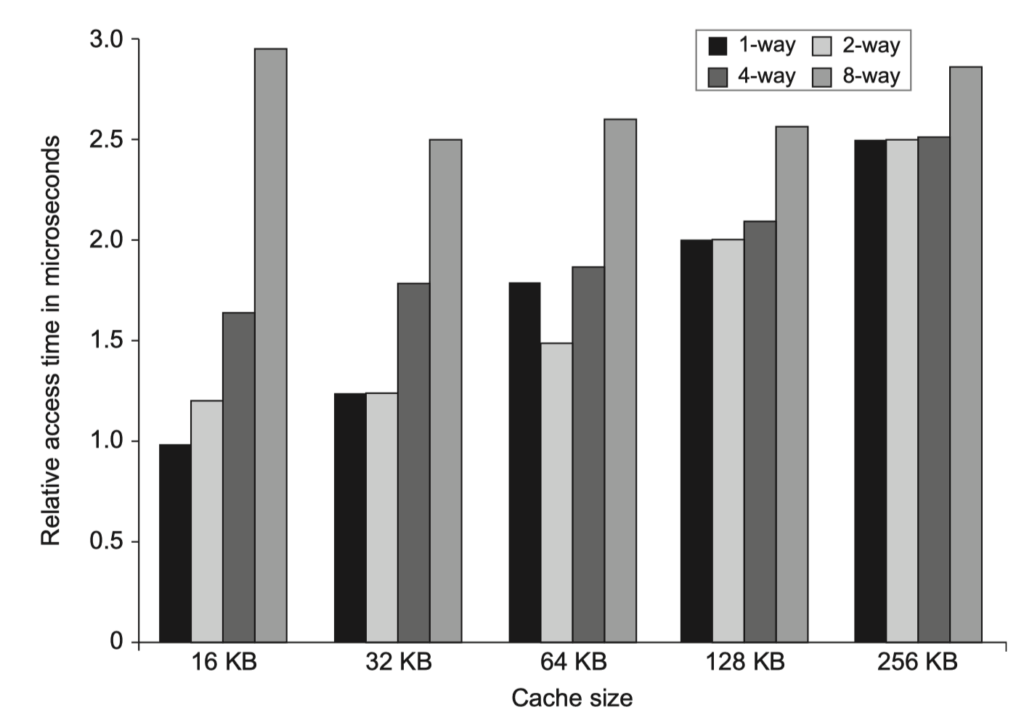

Figure 2.8 Relative access times generally increase as cache size and associativity are increased. These data come from the CACTI model 6.5 by Tarjan et al. (2005). The data assume typical embedded SRAM technology, a single bank, and 64-byte blocks. The assumptions about cache layout and the complex trade-offs between interconnect delays (that depend on the size of a cache block being accessed) and the cost of tag checks and multiplexing lead to results that are occasionally surprising, such as the lower access time for a 64 KiB with two-way set associativity versus direct mapping. Similarly, the results with eight-way set associativity generate unusual behavior as cache size is increased. Because such observations are highly dependent on technology and detailed design assumptions, tools such as CACTI serve to reduce the search space. These results are relative; nonetheless, they are likely to shift as we move to more recent and denser semiconductor technologies.

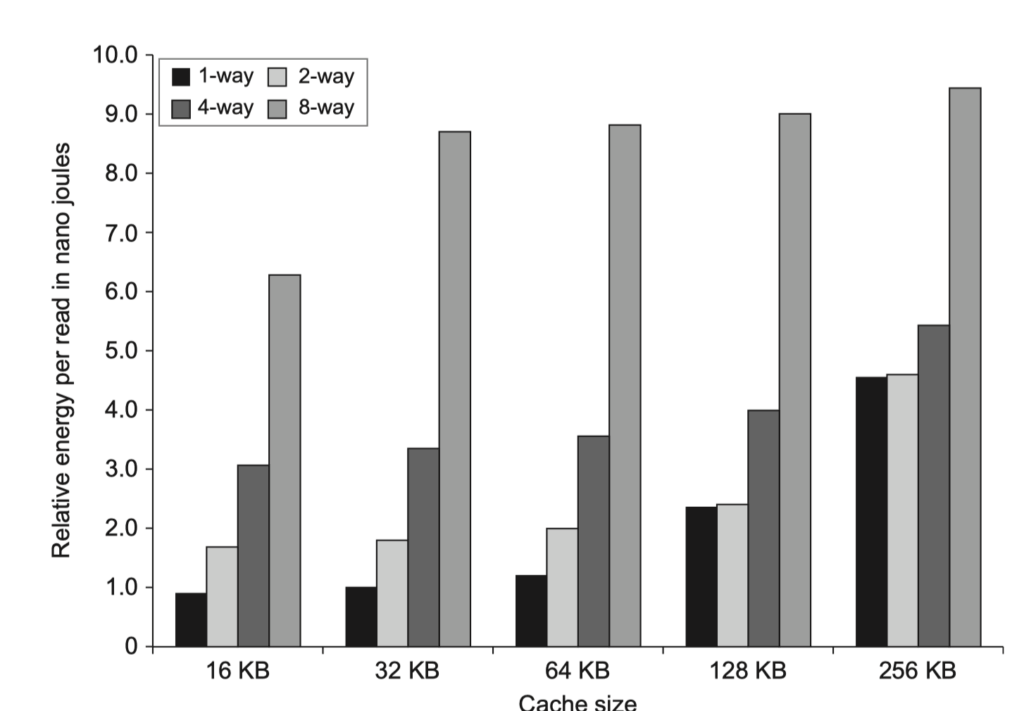

Figure 2.9 Energy consumption per read increases as cache size and associativity are increased. As in the previous figure, CACTI is used for the modeling with the same technology parameters. The large penalty for eight-way set associative caches is due to the cost of reading out eight tags and the corresponding data in parallel.

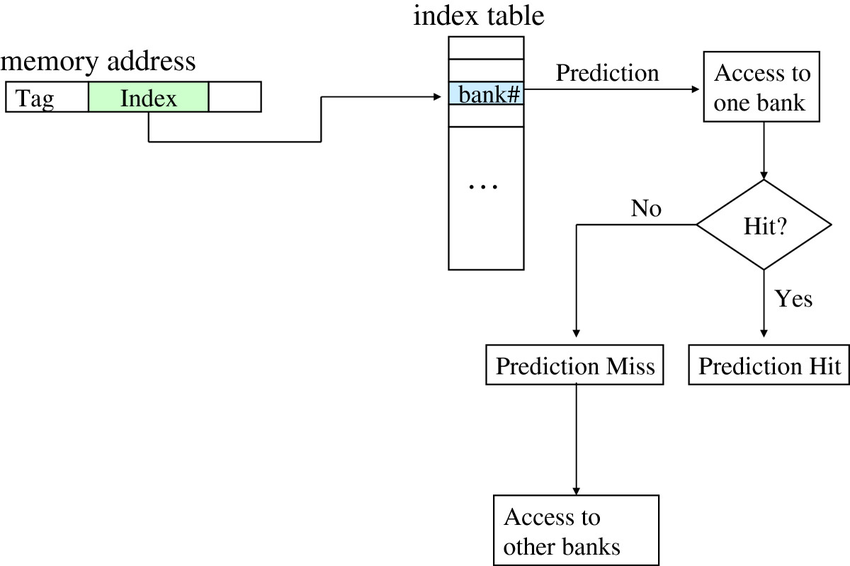

A conventional way-prediction (WP) cache from Chu, Yul, and Jin Hwan Park. “Dual-access way-prediction cache for embedded systems.” _EURASIP Journal on Embedded Systems_ 2014.1 (2014): 1-8.

#3. Pipelined Access and Multibanked Caches to Increase Bandwidth

• To allow multiple accesses per clock
  • Pipelining the cache access
  • Widening the cache with multiple banks
• Dual to the superpipelined and superscalar approaches to increasing instruction throughput
• Primarily targeted at L1$
  • For instruction throughput
• Multiple banks
  • Used in L2$ and L3$
• To handle multiple data cache accesses per clock,
  • Divide the cache into independent banks
  • Each supporting an independent access
• Intel Core i7 has four banks in L1
  • To support up to 2 memory accesses per clock

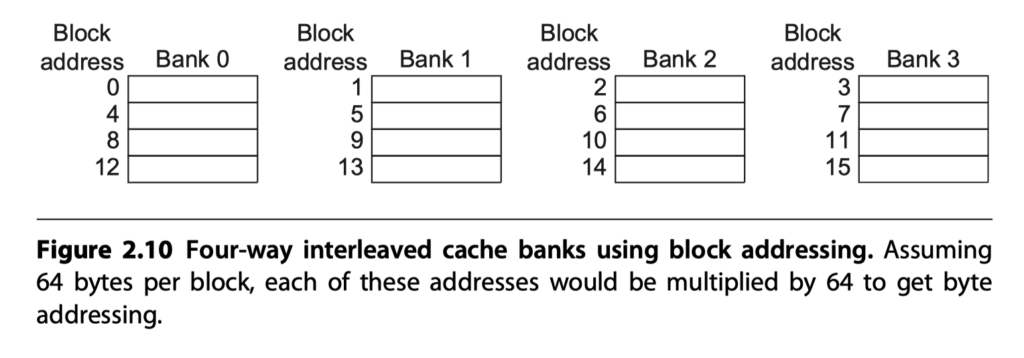

• Sequential interleaving
  • To spread the addresses of the block sequentially across the banks

---

#4. Nonblocking Caches to Increase Cache Bandwidth

• Non blocking cache = Lockup-free cache

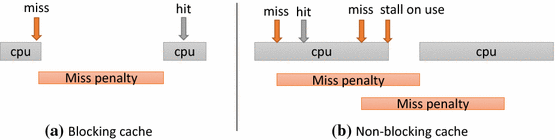

Non-blocking cache from Valsan, Prathap Kumar, Heechul Yun, and Farzad Farshchi. “Addressing isolation challenges of non-blocking caches for multicore real-time systems.” Real-Time Systems 53 (2017): 673-708.

• “Hit under miss”
  • Allowing the data cache to continue to supply cache hits during a miss
• “Hit under multiple misses”
  • Further lower the effective miss penalty

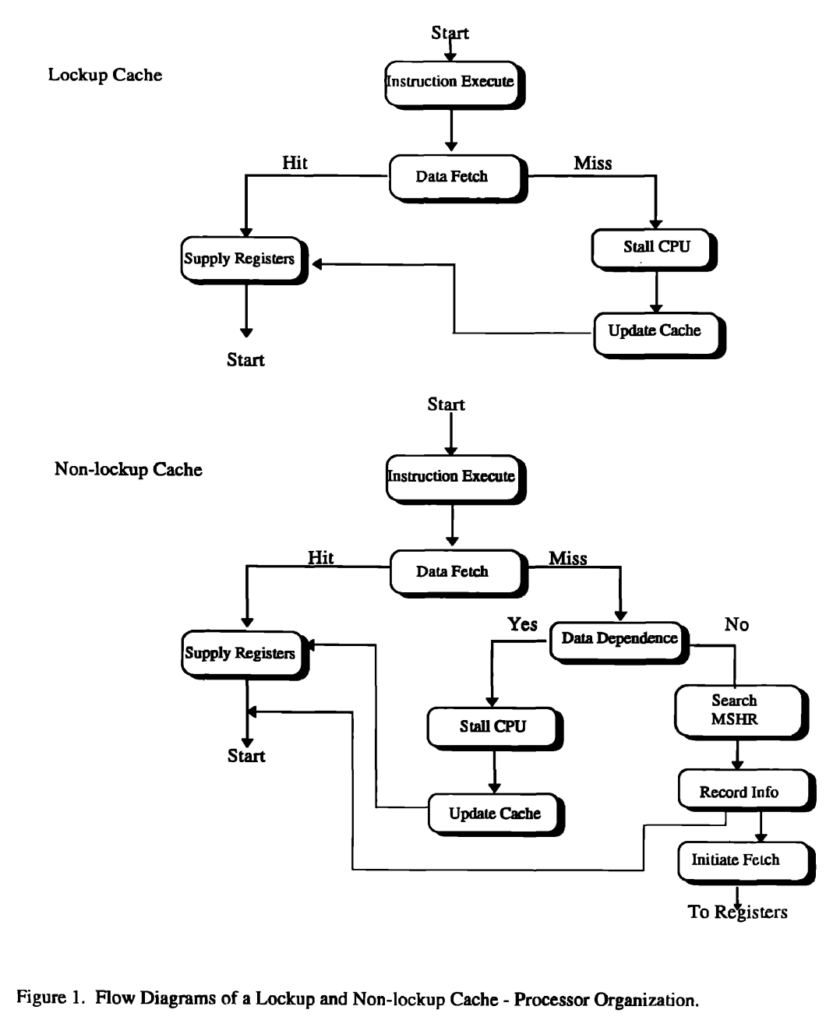

Belayneh, Samson, and David R. Kaeli. “A discussion on non-blocking/lockup-free caches.” ACM SIGARCH Computer Architecture News 24.3 (1996): 18-25.

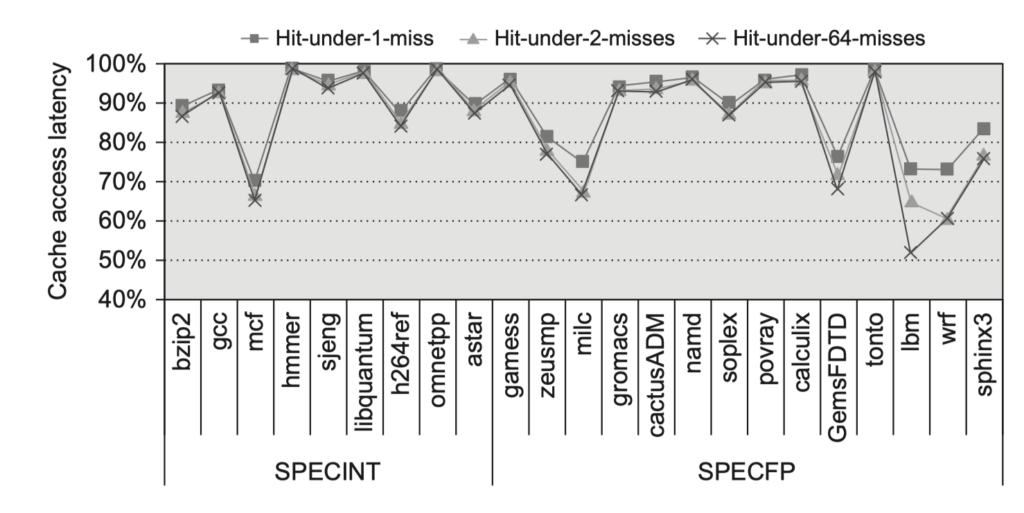

Figure 2.11 The effectiveness of a nonblocking cache is evaluated by allowing 1, 2, or 64 hits under a cache miss with 9 SPECINT (on the left) and 9 SPECFP (on the right) benchmarks. The data memory system modeled after the Intel i7 consists of a 32 KiB L1 cache with a four-cycle access latency. The L2 cache (shared with instructions) is 256 KiB with a 10-clock cycle access latency. The L3 is 2 MiB and a 36-cycle access latency. All the caches are eight-way set associative and have a 64-byte block size. Allowing one hit under miss reduces the miss penalty by 9% for the integer benchmarks and 12.5% for the floating point. Allowing a second hit improves these results to 10% and 16%, and allowing 64 results in little additional improvement.

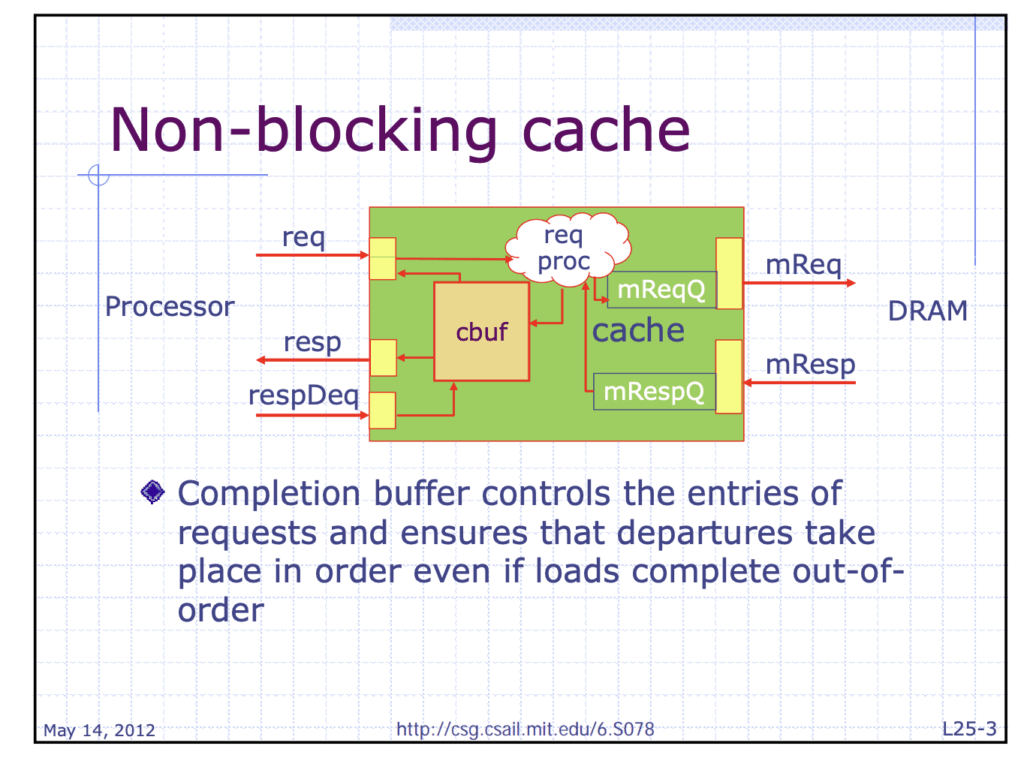

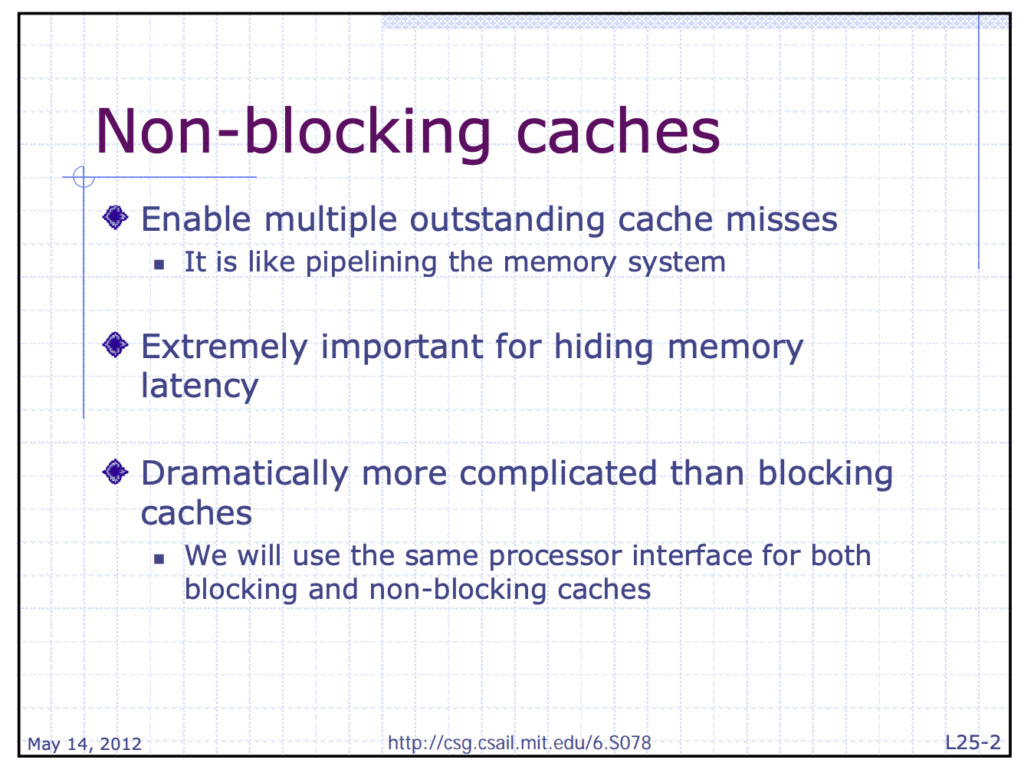

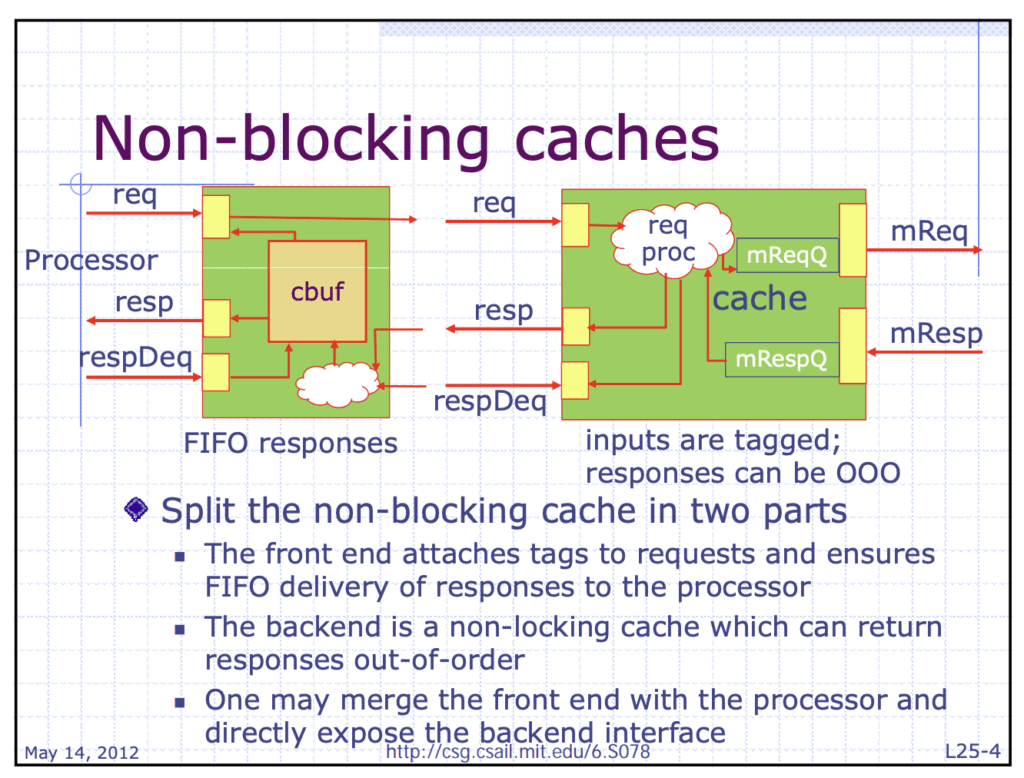

Nonblocking cache from MIT lecture: http://csg.csail.mit.edu/6.S078/6_S078_2012_www/handouts/lectures/L25-Non-Blocking%20caches.pdf

Implementing a Nonblocking Cache

• Two implementation challenges
  • Arbitrating contention between hits and misses
  • Hits can collide with misses returning from the next level of memory hierarchy
    • Or, collision between misses
  • Tracking outstanding misses  We know when loads or stores can proceed
    • i.e. Sequence of the multiple missed data returning from lower memory hierarchy can be out of order!
    • Must know which load or store caused the miss!
    • Must know where in the cache the data should be placed!
    • Miss Status Handling Registers (MSHRs) keeps tracking
• Steps
  • A miss occurs
  •  Allocate an MSHR
  •  Enter the appropriate information about the miss
  •  Tag the memory request with the index of the MSHR
  •  Return data with tagged info
  •  Transfer the data and tag information to the appropriate cache block
  •  Notify the load or store that generated the miss
• Related to memory coherency and consistency because …
  • Cache misses are no longer atomic
  • i.e. the request and response are split and maybe interleaved among multiple requests
  • Possible deadlock

---

#5. Critical Word First and Early Restart to Reduce Miss Penalty

• Idea: Don’t wait for the full block to be loaded
• Critical word first
  • Requested the missed word first from memory
  • Send it to the processor as soon as it arrives
  • Let the processor continue execution while filing the rest of the words in the cache block
• Early restart
  • Fetch the words in normal order
  • But, as soon as the requested word of the block arrives,
  • Send it to the processors
  • Let the processor continue execution (while filing the rest of the words in the cache block)
• Only benefits
  • Designes with large cache blocks

---

#6. Merging Write Buffer to Reduce Miss Penalty

• Write-through caches rely on write buffers

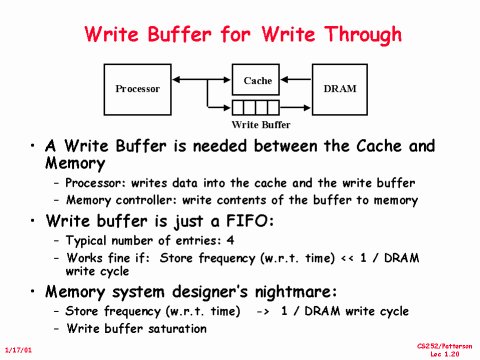

Write Buffer for Write Through from https://webdocs.cs.ualberta.ca/~amaral/courses/429/webslides/Topic4-MemoryHierarchy/index.htm

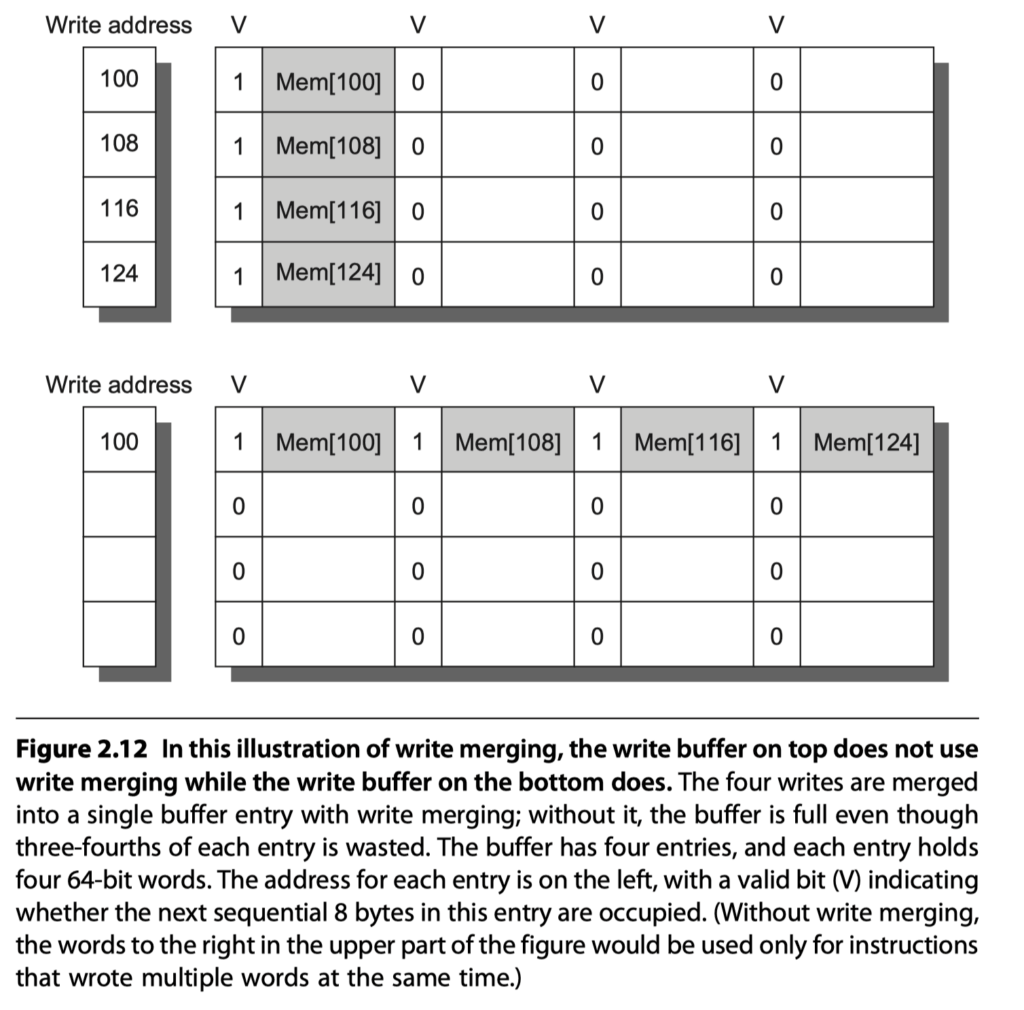

• Write merging
  • Motivation: multi-word writes usually faster than single-word writes!
  • Write buffer is empty
  •  The data and the full address are written in the buffer
  •  The buffer is still working to send the data to memory
  •  If the processor want to write new data to the address that matches the address of a valid write buffer entry
  •  The new data are combined to the entry in the write buffer
  •  Then, send it to memory
  • Need valid bit per word!

---

#7. Compiler Optimization to Reduce Miss Rate

• Optimization without any hardware change!!

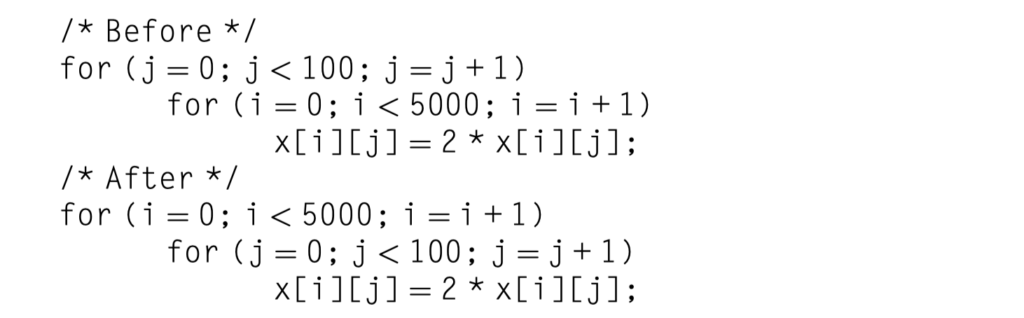

Loop Interchange

• Programs with nested loops
• Loop interchange can make the code access the data in the order in which they are stored
• Reduces misses by improving spatial locality
• Eg.  = 2D-array of size [5000,100] stored in  order

• The original code:
  • Skip through memory in strides of 100 words
• The revised version:
  • All the words in a block are utilized before going to the next block

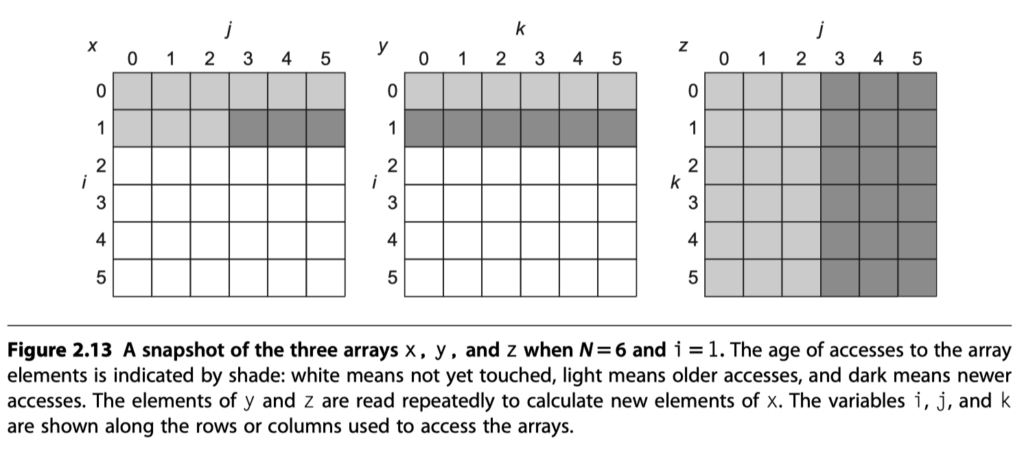

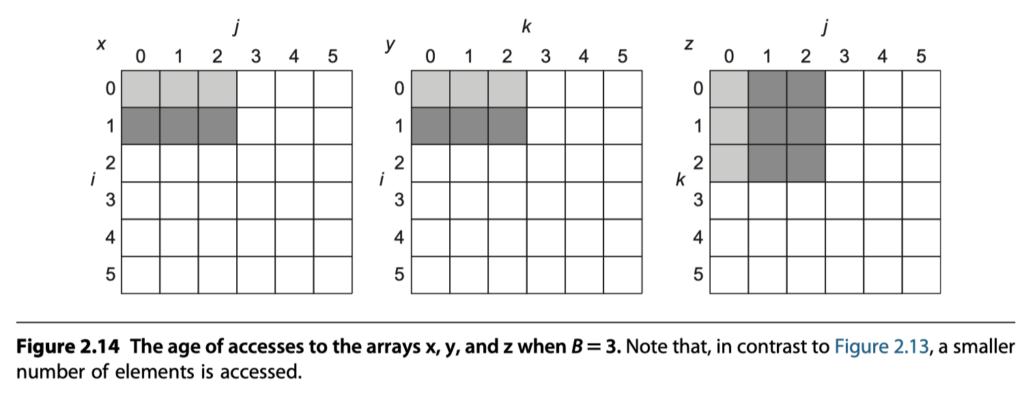

Blocking

• Improves temporal locality to reduces misses

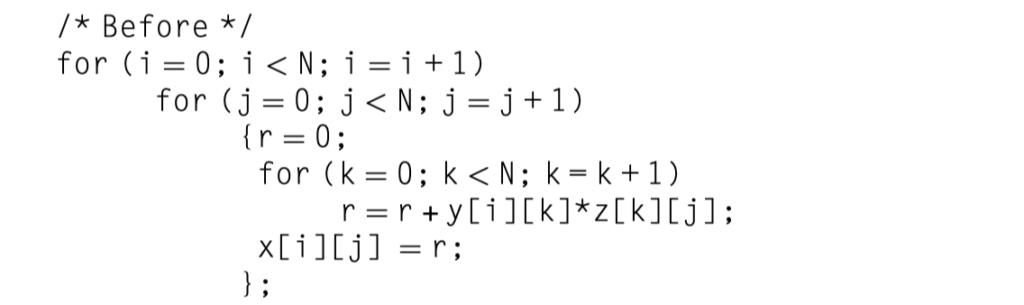

• The original code: $
  • x = y \times z$ GEMM
  • Total memory access:  without cache hit

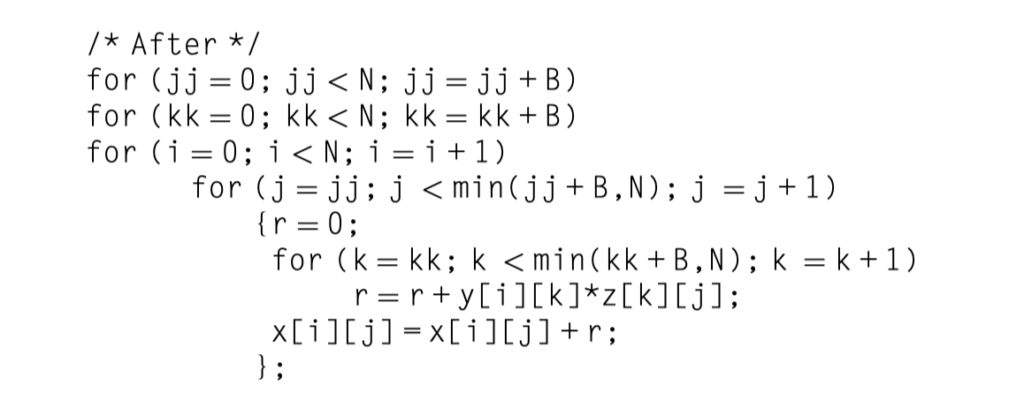

• The revised code: B
  – locked with  = Cache size =
  – Block both  and  operand matrices
  – Total memory access:  with cache hit
  – y benefits from spatial locality (3 elements in a line)
  – z benefits from temporal locality (3 time fetch from different line in the cache)

---

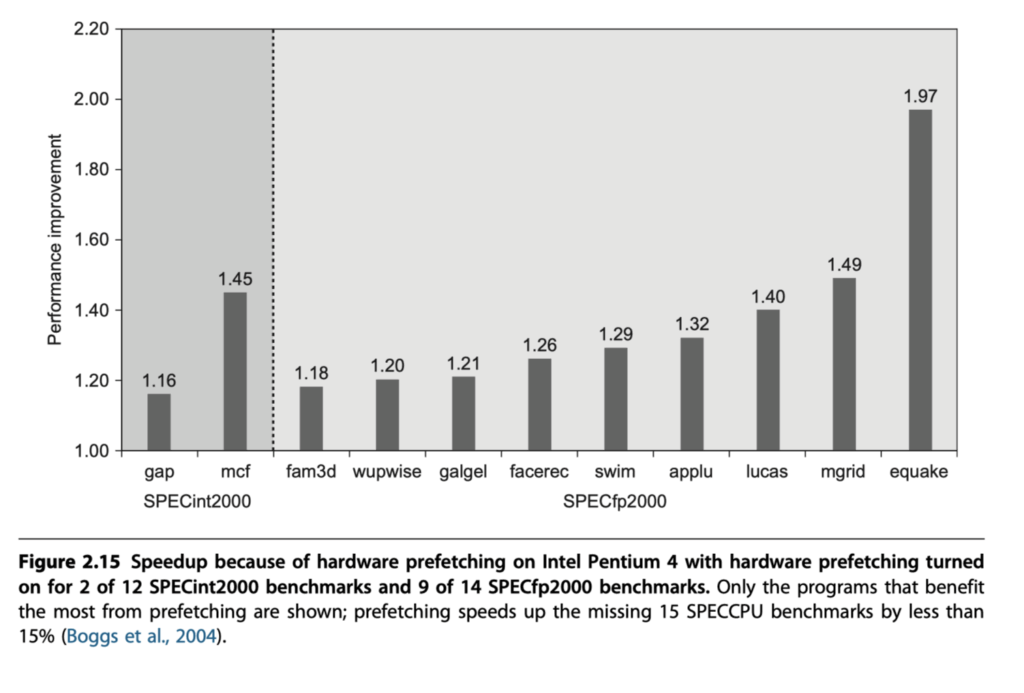

#8. Hardware Prefetching of Instructions and Data to Reduce Miss Penalty or Miss Rate

• Prefetch items before the processor requests them!
• Instruction prefetch
  • Fetch two adjacent blocks on a miss
  • The requested block  Instruction cache
  • The prefetched block  Instruction stream buffer
• Data prefetch
  • Stream buffers that can handle either instructions or data
  • 50-70% of all misses can be captured by eight stream buffers with two 64KiB four-way associative caches (One I$ and another D$)
• Intel Core i7
  • Hardware prefetching into both L1 and L2
  • Prefetching being accessing the next line
  • More aggressive version?  Reduced performance!

---

#9. Compiler-Controlled Prefetching to Reduce Miss Penalty or Miss Rate

• Alternative to hardware prefetching for the compiler?
• Goal: Overlap execution with the prefetching of data
  • Loops  Unroll to prefetch data
• To insert prefetch instructions to request data
  • before the processor needs it
• Flavor#1: Register prefetch
  • Loads the value into a register
• Flavor#2: Cache prefetch
  • Loads data only into the cache and not the register
• Faulting or Nonfaulting
  • Does or does not cause an exception for
    • virtual address faults and
    • protection violations
• Normal load instruction = “faulting register prefetch instruction”
• Nonfaulting prefetch = simply turn into no-ops if they would normally result in an exception
• “Semantically invisible” to a program
  • The most effective prefetch?
  • Doesn’t change the contents of registers and memory
  • Cannot cause virtual memory faults
  • eg. Nonfaulting cache prefetch = “nonbinding” prefetch
• Overhead?
  • Instruction overhead to issuing prefetch instructions

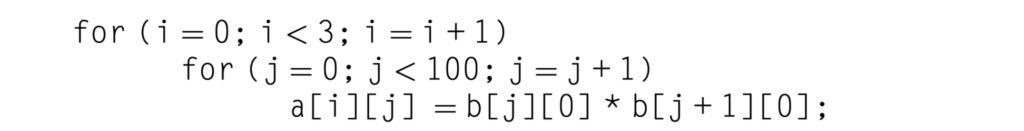

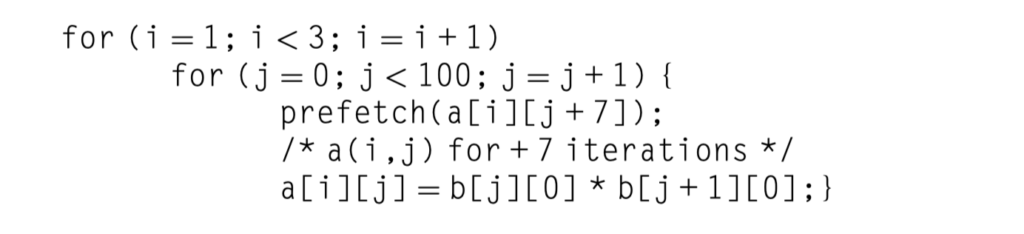

• Example
  – 8KiB direct-mapped data cache
  – 16B blocks
  – Write-back cache that does write allocate
  – The elements of  and  = 8B : DFP

matrix = (0th column) * (Shifted 0th column) of b matrix

• Without prefetching
  •  matrix
    • Spatial locality: One miss for each even values of
    •  misses from
  •  matrix
    • No spatial locality: Column-wise access for row-major data arrangement
    • Temporal locality: Used only twice
    •  misses of  matrix for operation with 0th row of  matrix
  • Total misses = 251

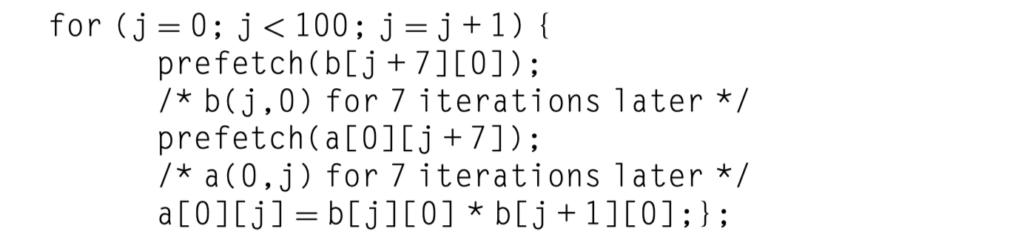

• With prefetch instruction inserted
  • 7 misses for b[0][0] ~ b[6][0] in the first loop ()
  • 4 misses () for a[0][0] ~ a[0][6] in the first loop ()
  • 4 misses () for a[1][0] ~ a[1][6] in the second loop ()
  • 4 misses () for a[2][0] ~ a[2][6] in the second loop ()
  • Total misses = 19.
  • Much better than the no-prefetch case.
• Trade off?
  • Avoiding 232 cache miss vs Executing 400 prefetch instructions

---

#10. Using HBM to Extend the Memory Hierarchy

• Use DRAM as a massive L4 caches
• Where do the tags reside?
  • Block size = 64B?
    • 1GiB L4 Cache in DRAM  96 MiB of tags
    • Too large tag size: Larger than all on-chip memory
  • Block size = 4KiB?
    • 1GiB L4 Cache in DRAM  256K entries or < 1MB tags
    • Acceptable tag size
• Problems of large 4KiB block size?
  • Fragmentation problem
    • Too large block size cause inefficient usage
    • Contents in a block are not reused enough
    • Solved by “Subblocking”.
      • Subblocking allow parts of the block to be invalid
      • But, doesn’t work for the second problem
  • Less number of blocks
    • Result in more misses
    • Esp. Conflict and consistency misses
• Just store the tags inside L4 HBM?
  • Two slow: Requires two accesses to DRAM for each L4 access
    • One for tag
    • One for data
  • Solution: Place the tags and the data in the same row in the HBM SDRAM!
    • Open a row only one time w/ row access
    • Tag check
    • Data access if hit w/ column access (only 1/3 of row access)
  • Loh and Hill (2011)
    • L4 HBM
    • Each SDRAM row
      • A set of tags
      • 29 data segments
    • 29-way set associative cache
    • Row access for tag
    • Column access for data
    • But, two full DRAM access for miss
  • Quresh and Loh (2012)
    • “Alloy cache”
    • Reduces the hit time
    • Molds the tag and data together and uses a direct mapped cache structure
    • Directly indexing the HBM cache and doing a burst transfer of both the tag and data
    • L4 access time = only a single HBM cycle!
    • But, two full DRAM access for miss
  • Solutions to reduce miss access time
    • 1. Using map that keeps track of the blocks in the cache
      2. Uses a memory access predictor that predicts likely misses using history prediction techniques

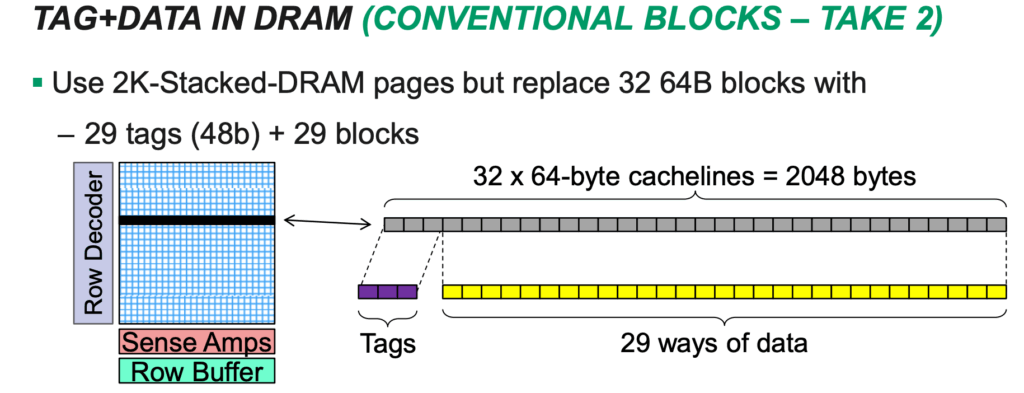

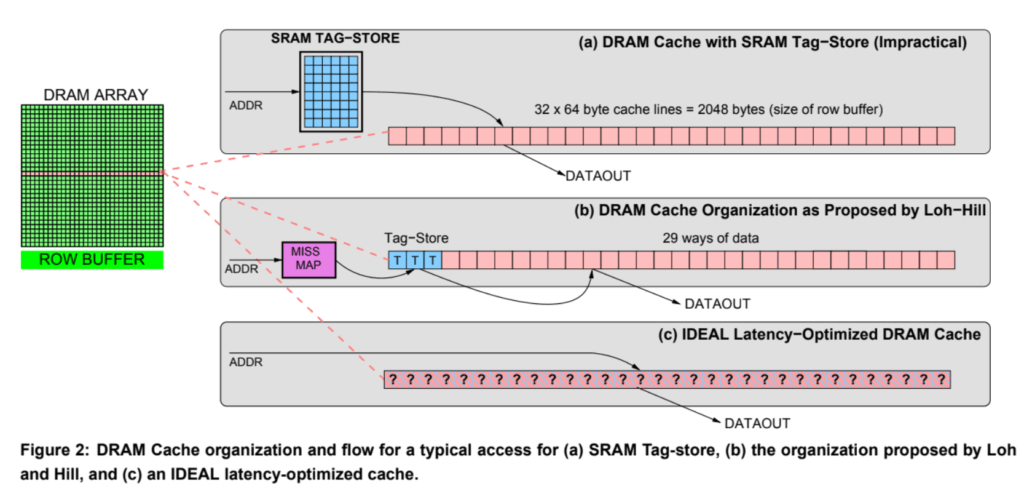

Tag and data in a SDRAM row by Loh and Hill

Tag-data store methods summarized by Quresh and Loh

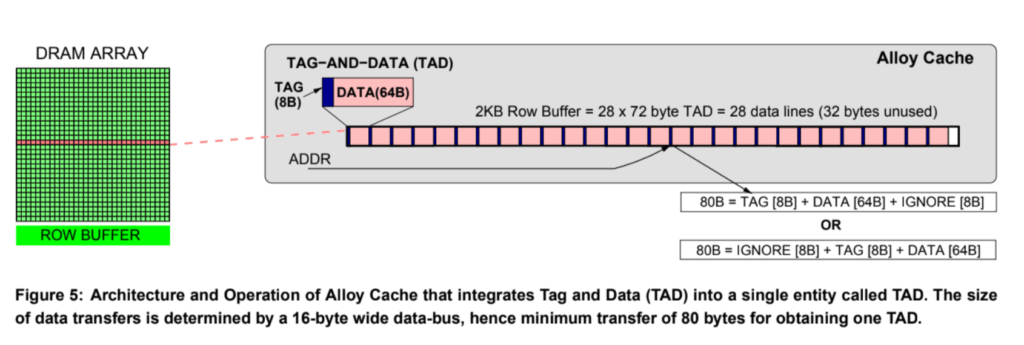

Alloy cache proposed by Quresh and Loh

---

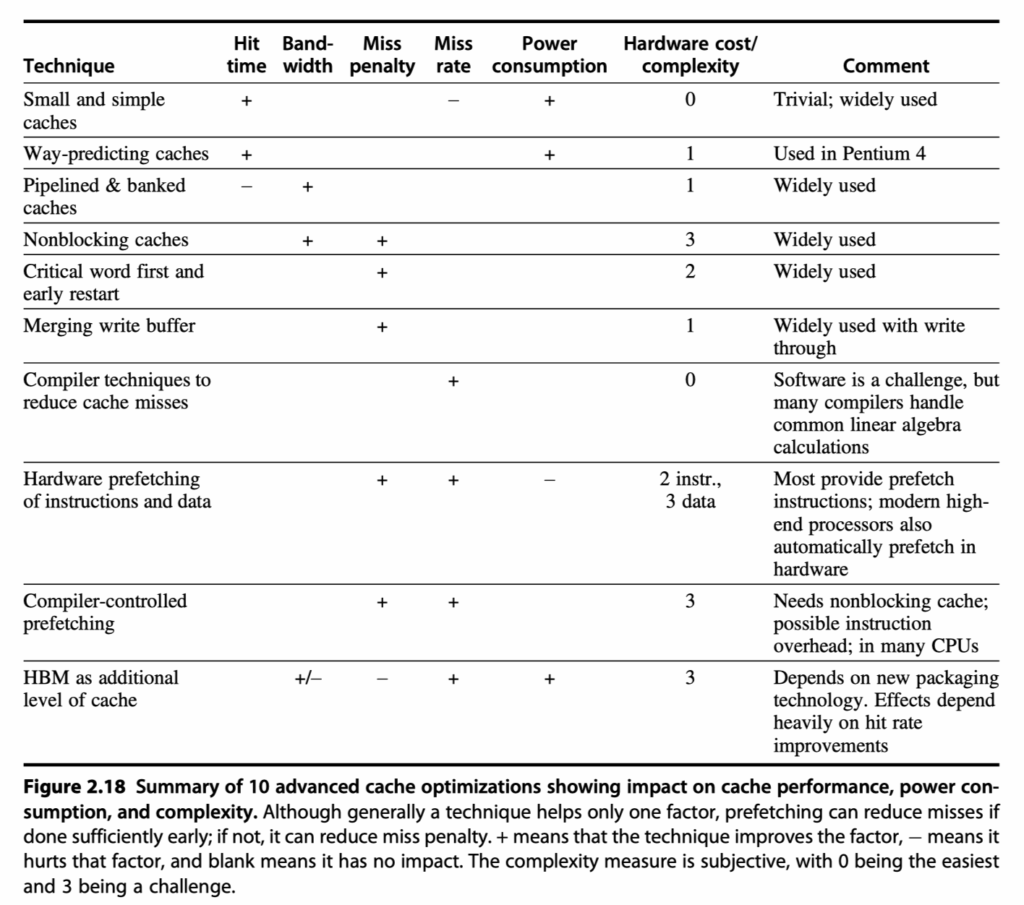

Cache Optimization Summary

---

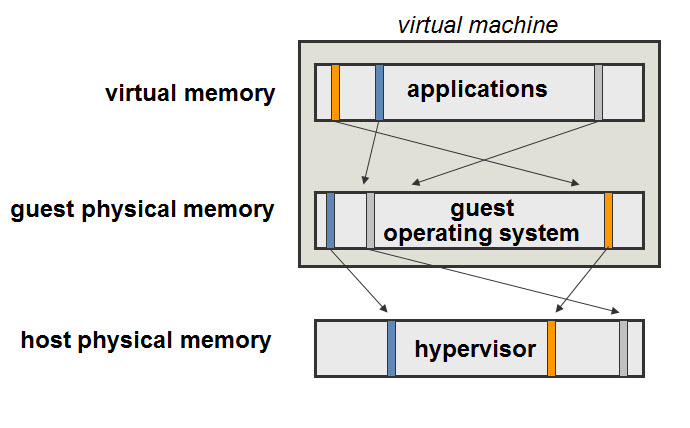

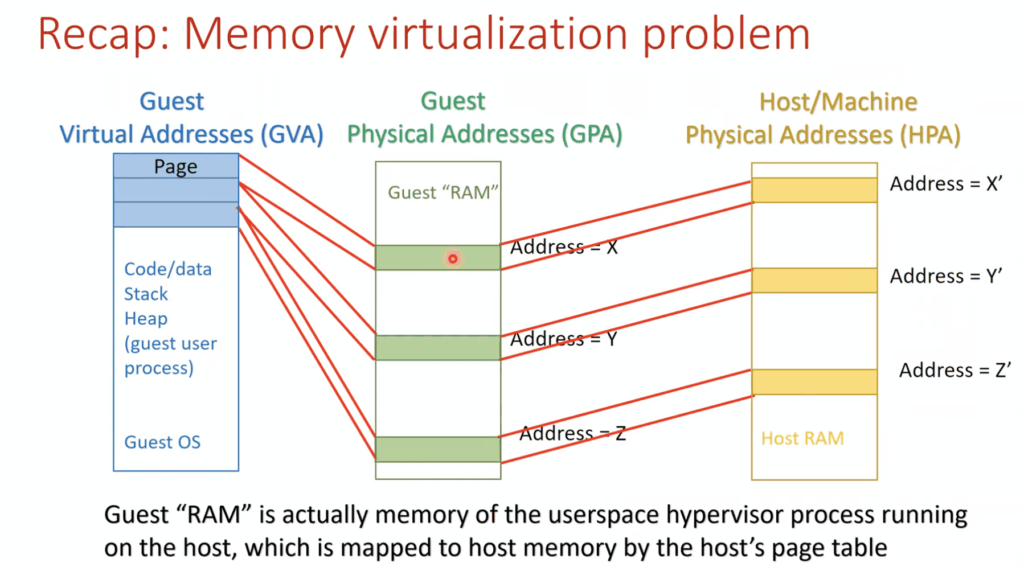

Virtual memory and Virtual Machines

• Virtual machine
  • An efficient, isolated duplicate of the real machine
• Virtual machine monitor (VMM)
  • VMM provides an environment for programs which is essentially identical with the original machine
  • Programs run in this environment show at worst only minor decreases in speed
  • The VMM is in complete control of system resources.
• Virtual memory
  • Refer to the introduction of virtual memory in “Review of Memory Hierarchy” chapter
  • Physical memory  Cache of secondary storage
  • Move pages between the physical memory and the storage
  • TLB  Caches on the page table
    • Eliminating the need to do a memory access every time an address is translated.
  • Provides separation between processes that
    • Share one physical memory
    • But have separate virtual address spaces
• Protection and privacy between processes sharing the same processor
  • Electronic burglaries
  • Arise from programming errors that allow a cyberattack

---

Protection via Virtual Memory

• Page-based virtual memory,
  • Including a TLB that caches page table entries,
  • Is the primary mechanism that protects processes from each other.
• Protection via segmentation and paging in the 80×86
  • Refer to Sections B.4 and B.5 in “Review of Memory Hierarchy” chapter for more detailed description
• Multiprogramming, where several programs running concurrently share a computer,
  • Has led to demands for protection and sharing among programs
  • And to the concept of a process
• A process
  • “Breathing air and living space of a program”
  • Must be possible to switch from one process to another.
  • i.e. Process switch or context switch
• OS and architecture join forces to
  • Allow processes to share the hardware
  • Yet not interfere with each other

---

Role of architecture for protection?

1. Provide at least two modes to distinguish …
   1. User process
   2. Operating system process = Kernel process = Supervisor process
2. Provide a portion of the processor state
   1. that a user process can use but not write.
   2. This state includes
      1. User/Supervisor mode bit
      2. Exception enable/disable bit
      3. Memory protection information
3. Provide mechanism to switch the processor modes
   1. User mode  Supervisor mode : System call
      1. Implemented as a special instruction
      2. Transfer control to a dedicated location in supervisor code space
      3. Save the PC from the point of the system call
   2. Supervisor mode  User mode :
      1. Like a subroutine return,
      2. Restore the previous/user mode
4. Provide mechanisms to limit memory accesses

How to implement protection?

• Add protection restrictions to each page of virtual memory
• The protection restrictions included in each page table entry determines …
  1. whether a user process can read this page,
  2. whether a user process can write to this page, and
  3. whether code can be executed from this page
  4. neither read nor write a page if it is not in the page table.
• Because only the OS can update the page table,
• The paging mechanism provides total access protection.
• Paged virtual memory access
  • At least twice longer latency
  • One for obtaining the physical address
    • Need to look up a huge page table!
  • One for getting the data
• Solution of the slow paged virtual memory access
  • Rely on the principle of locality
  • If the access has locality, then the address translation have locality
  •  Use Translation lookaside buffer (TLB)
  • i.e. Use a special cache for page table
• Exploiting locality in memory hierarchy?
  • Cache  Main-memory
  • Page  Virtual-memory
  • TLB  Page-table
• TLB entry or Page-table entry
  • Mapping between the virtual address and the physical address of a page
  • Tag-portion:
    • Holds portions of the virtual address
  • Data-portion:
    • Holds a physical page address, protection field, valid bit, and usually a use bit and a dirty bit.
  • How to update a page table entry?
    • OS update the values in the page table
    • Invalidating the corresponding TLB entry
• Is it enough to let your computer architecture obey the restrictions on pages?
  • Not enough!!
  • We depend on the operating system as well as the hardware!
• What’s the problem of OS?
  • It is too big to find and fix the bugs in it
  • 10s of millions of lines
  • Bug rate (?) = One per thousand lines
  • So much security hole
  • Solution? Use a protection model like virtual machines with a much smaller code base than the full OS

---

Protection via Virtual Machines

• First developed in the late 1960s
• Why virtual machines?
  • Importance of isolation and security
  • Failures in security and reliability of standard OSs
  • Sharing of a single computer among many users
  • Overhead of VMs become acceptable
• Definition of VMs?
  • “All emulation methods that provide a standard software interface”
• Our focus here will be on VMs where the ISA presented by the VM and the underlying hardware match
  • i.e. System virtual machines
  • e.g. IBM VM/370, VMware ESX Server, Xen
• With a VM, multiple OSes all share the hardware resources
• Virtual machine monitor (VMM) or Hypervisor
  • Underlying hardware = ‘Host’
  • Host’s resources are shared among the ‘Guest’ VMs
  • VMM determines how to map virtual resources to physical resources
    • Time-shared
    • Partitioned
    • Emulated in software
  • Much smaller than a traditional OS
  • Isolation portion of a VMM ~ only 10,000 lines of code
• Cost of virtualization?
  • User level processor-bound programs  Little OS invocation  Little virtualization overhead
  • I/O-intensive workloads  Many system calls and privileged instructions  OS-intensive  High virtualization overhead
  • Slowed down by the instructions that must be emulated by the VMM
• If Guest ISA = Host ISA  Run instructions directly on the native hardware
• VM’s benefits
  • Protection improvement
  • Manage software
    • Free to use multiple/old/new/legacy OSes
  • Mange hardware
    • Multiple software stacks share hardware
    • Possible to migrate ‘running VM’ to a different computer
• Basic requirement of system virtual machines
  • System mode and user mode (at least)
  • A privileged subset of instructions
    • Available only in system mode

---

Requirements of a Virtual Machine Monitor

• VMMs that present a software interface to guest software
  • Must isolate the state of guests from each other
  • Must protect itself from guest software (including guest OSes).
• VMM must control everything
  • access to privileged state
  • address translation
  • I/O
  • exceptions and interrupts
• Privilege level of VMM > Guest VMs

---

Instruction Set Architecture Support for Virtual Machines

• Virtualizable architecture
  • VM planning during the design of the ISA
  • Allows the VM to execute directly on the hardware
  • e.g. IBM 370, recent x86, RISC-V
• Privileged instruction by guest OS?
  • Trap to VMM  Support a virtual version of the sensitive information as the guest OS expects
  • No VMM trapping support?
    • Special precautions by VMM,
    • Locate all problematic instructions
• Multi-level privileged instructions
  • One for guest user
  • One for some OS operations that
    • exceed the permissions granted to a user program
    • But, do not require intervention by VMM because they cannot affect any other VM
  • One for VMM
  • eg. Xen design

---

Impact of Virtual Machines on Virtual Memory and I/O

• Virtualization of virtual memory
  • Each guest OS in every VM …
  • manages its own set of page tables
• Separation of the notion of real and physical memory!
  • Real memory?
    • Intermediate level between virtual memory and physical memory
  • Virtual memory  Real memory
    • Mapped by guest OS
    • Via page tables
  • Guests’ real memory  Physical memory
    • Mapped by VMM page tables
• Memory virtualization and VMware Ballooning by FRANKBRIX
  1. Inside a virtual machine you start an application. For instance solitaire
  2. Solitaire as an application will ask the guest operating system (in this case windows) for memory. Windows will give it memory and map it from the virtual memory  guest physical memory (real memory in H&P)
  3. What happens next is that the hypervisor sees the request for memory and the hypervisor maps guest physical memory (real memory in H&P)  host physical memory (physical memory in H&P)
  4. Now everything is perfect. You play solitaire for a few hours. And then you close it down.
  5. When you close solitaire the guest operating system will mark the memory as “free” and make it available for other applications. BUT since the hypervisor does not have access to Windows’ “free memory” list the memory will still be mapped in “host physical memory” and putting memory load on the ESXi host.
  6. This is where ballooning comes into place. In case of an ESXi host running low on memory the hypervisor will ask the “balloon” driver installed inside the virtual machine (with VMware Tools) to “inflate”
  7. The balloon driver will inflate and because it is “inside” the operating system it will start by getting memory from the “free list”. The hypervisor will detect what memory the balloon driver has reclaimed and will free it up on the “host physical memory” layer!


  VMware ballooning is a memory reclamation  technique used when and ESXi host is running low on memory. You should not see balloning if your hosts is performing like it should. To understand ballooning we would have to take a look at the following picture. (Figure By FRANKBRIX)

Memory virtualization problem captured from video by Mythili Vutukuru

Extended page table by Mythili Vutukuru

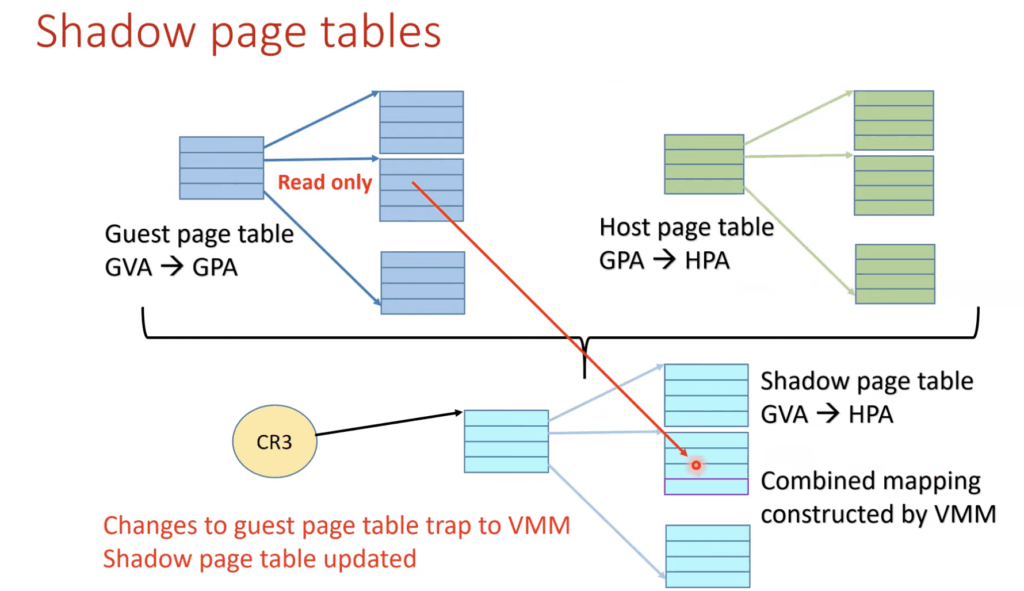

• Shadow page table (SPT)
  • Double mapping is too expensive
  • SPT maps directly (!) from
    • the guest virtual address space
    • to the physical address space of the hardware
  • How to?
    • VMM detects all modification to the guest’s page table
    • Ensure the shadow page table entries being used by the hardware for translations
    • So, VMM must trap any attempt by the guest OS
      • to change ints page table or
      • to access the page table pointer

Shadow page table by Mythili Vutukuru

• I/O Virtualization?
  • Most difficult part of system virtualization
  • Increasing number of I/O devices
  • Increasing diversity of I/O device types
  • Sharing of a real device among multiple VMs
  • Supporting the myriad of device drivers
  • How to?
    • Giving each VM generic version of each type of I/O device driver
    • Then, VMM handle real I/O
  • eg1. HDD  virtual tracks/sectors
  • eg2. Network  VMs share short time slices

---

Extending the Instruction Set for Efficient Virtualization and Better Security

• Two primary areas of performance improvement
  • Handling page tables and TLBs (the cornerstone of virtual memory)
    • Avoiding unnecessary TLB flushes
    • Using the nested page table mechanism (eg. IBM)
      • Rather than a complete set of shadow page tables
  • I/O, specifically handling interrupts and DMA.
    • Allow a device to directly use DMA to move data (eliminating a potential copy by the VMM)
    • Allow device interrupts and commands to be handled by the guest OS directly.
• Concerns about security
  • VMM penetration followed by memory remapping to access to the credit card information data
  • Trojan horse in the same VM with the credit card information data
  • eg. Intel’s software guard extensions (SGX)
    • Allow user programs to create “enclaves“
    • Enclaves: Portions of code and data that are always encrypted and decrypted only on use and only with the key provided by the user code.

---

An Example VMM: The Xem Virtual Machine

• VM developers decided to
  • Allow the guest OS to be aware that it is running on a VM
• Para-virtualization in Xen VMM
  • Allowing small modification to the guest OS to simplify virtualization
• Xen VMM
  • Used in Amazon’s web services data centers
  • Provides a guest OS with a virtual machine abstraction
  • eg1. Avoid flushing the TLB
  • eg2. Allow the guest OS to allocate page, checking protection restriction
• Four protection level
  • Lv 0: Xen VMM
  • Lv 1: Guest OSs
  • Lv 3: Applications
• Xen modifies the guest OS
  • Not to use problematic portions of the architecture
  • eg. Change 1% (~3000 lines) of 80×86 specific code in Linux port to Xen
• Driver domains
  • Special privileged VMs to simplify the I/O challenge of VMs
  • Run the physical device drivers
  • Regular VMs (guest domains) run simple virtual device drivers that must communicate with the physical device drivers in the driver domains
  • Data communication between guest and driver domains  Done by page remapping

---

Cross-Cutting Issues: The Design of Memory Hierarchies

(Topics from other chapters that are fundamental to memory hierarchies)

Protection, Virtualization, and Instruction Set Architecture

• IBM360  IBM370 : Support virtual memory
• 80×86 instruction POPF problem
• IBM mainframe hardware and VMM’s 3 steps to improve performance
  1. Reduce the cost of processor virtualization.
  2. Reduce interrupt overhead cost due to the virtualization.
  3. Reduce interrupt cost by steering interrupts to the proper VM without invoking VMM.

Autonomous Instruction Fetch Units

• OoO or deep pipeline processors decouple the instruction fetch using a separate instruction fetch unit
• The instruction fetch unit accesses the instruction cache to fetch an entire block before decoding it into individual instructions
• May generate additional misses, but may reduce the total miss penalty incurred
• Also include data prefetching

Speculation and Memory Access

• Speculation
  • An instruction is tentatively executed before the processor knows whether it is really needed.
  • Rely on branch prediction
  • If incorrect, flush the speculated instructions from the pipeline
• Protection with speculation?
  • With speculation, the processor may generate memory references, which will never be used because the instructions were the result of incorrect speculation. Those references, if executed, could generate protection exceptions. Obviously, such faults should occur only if the instruction is actually executed.

Special Instruction Caches

• One of the biggest challenges in superscalar processors
  • To supply the instruction bandwidth!!
• A small cache of recently translated instructions
  • reduce instruction bandwidth demands
  • reduce branch misprediction penalties

Coherency of Cached Data

• Processor may see the old or stale copy of data in multiple processors and I/O devices
• I/O cache coherency question is this:
  • where does the I/O occur in the computer—
  • between the I/O device and the cache
  • or between the I/O device and main memory?
  • Many systems therefore prefer that I/O occur directly to main memory

---

Putting It All Together: Memory Hierarchies in the ARM Cortex-A53 and Inter Core i7 6700

The ARM Corte-A53

• Cortex-53
  • A configurable core that supports the ARMv8A instruction set architecture
  • Includes 32bit and 64bit modes
  • Delivered as an IP (intellectual property) core
  • Used in a variety of tablets and smartphones
• IP core flavors
  • Hard cores
    • Optimized for a particular semiconductor vendor
    • Black boxes with external interfaces
  • Soft cores
    • Delivered in a form that uses a standard library of logic elements
    • Can be compiled for different semiconductor vendors
    • Can be Modified
• Issue two instructions per clock @ up to 1.3 GHz

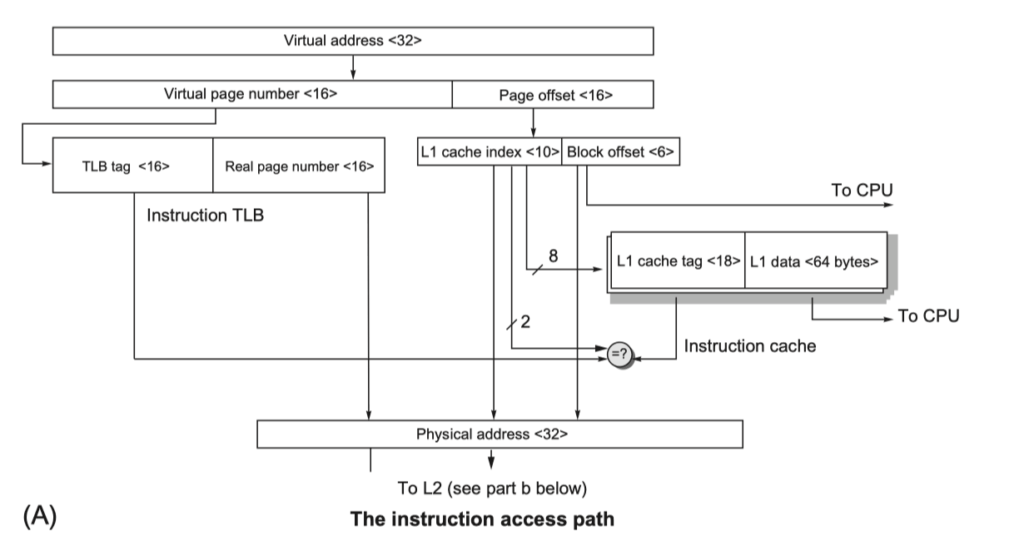

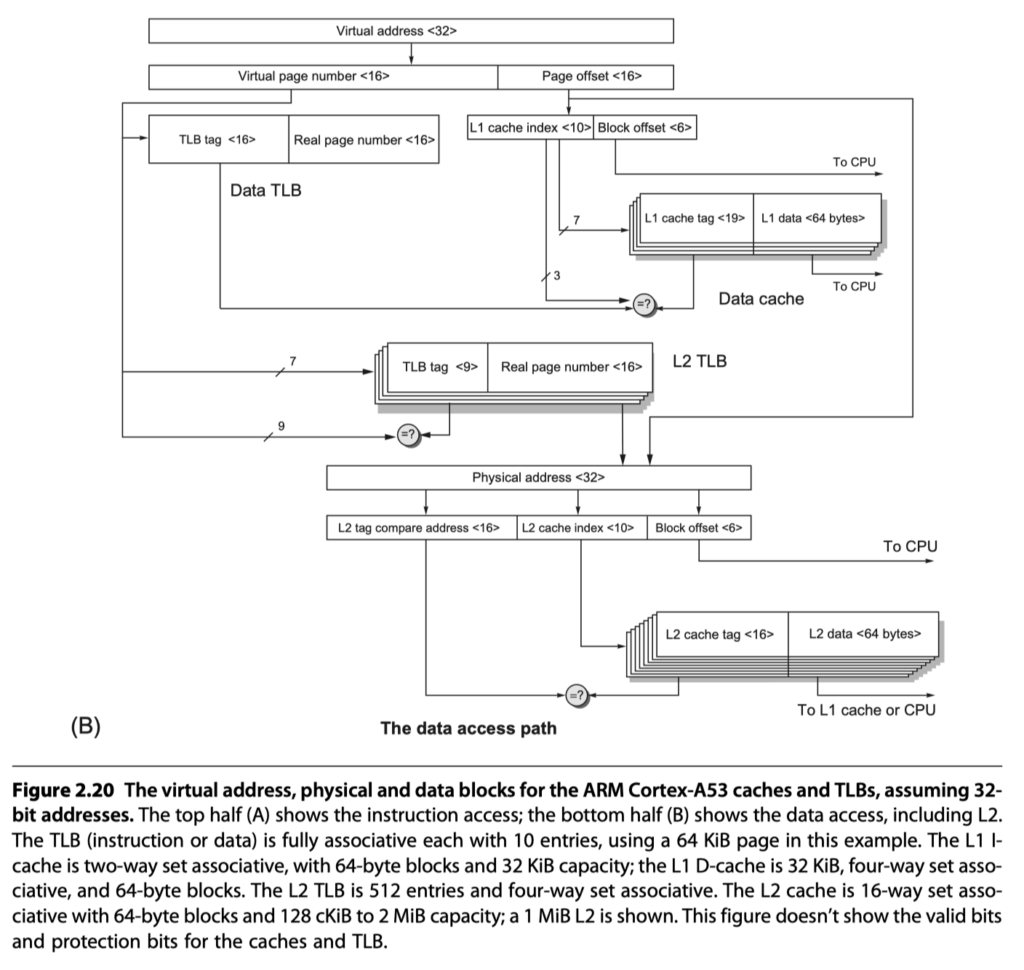

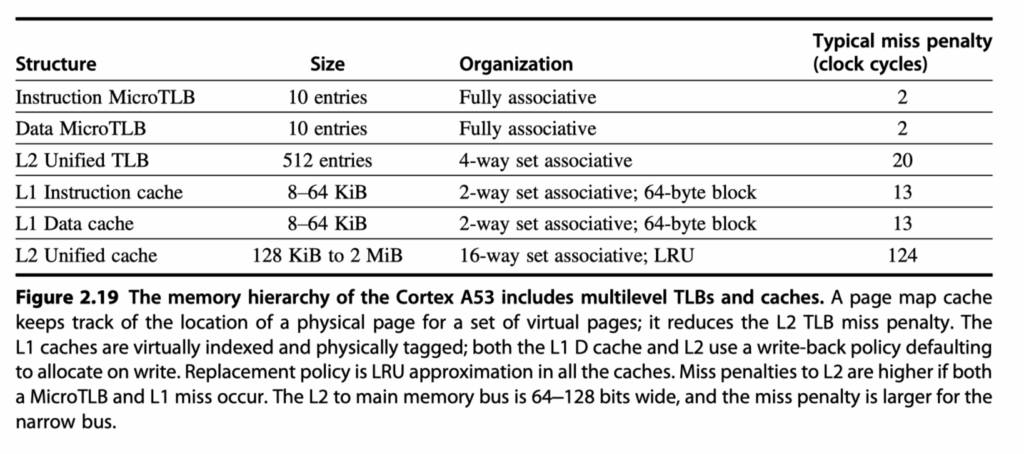

• Two-level TLB, two-level cache

Performance of the Cortex-A53 Memory Hierarchy

• 32 KiB primary cache / 1 MiB L2 cache
• < 1% instruction cache miss rates for SpecInt2006 benchmarks

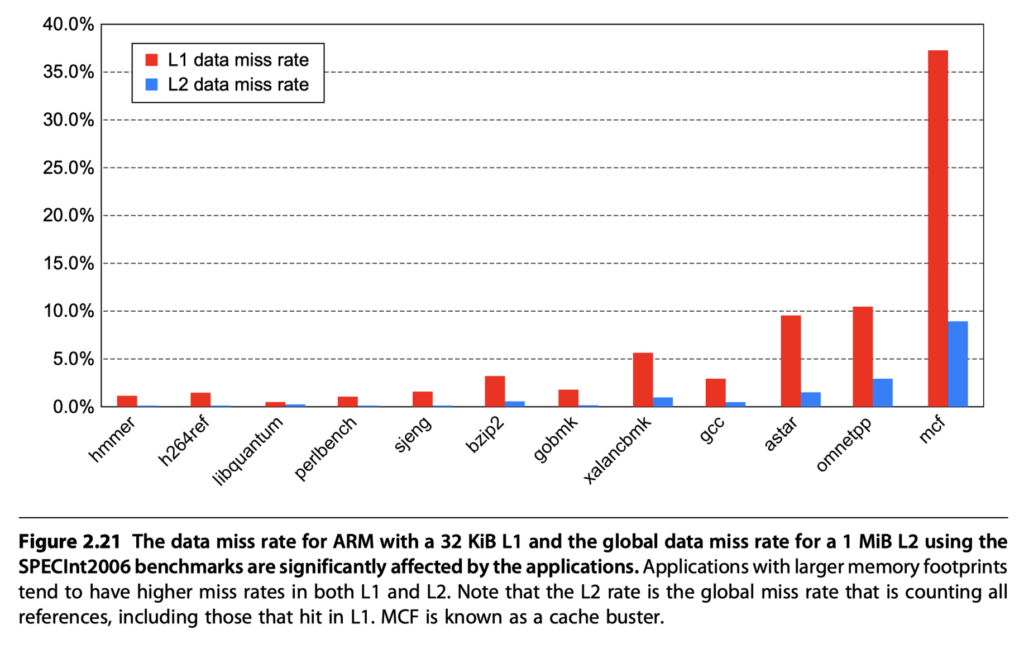

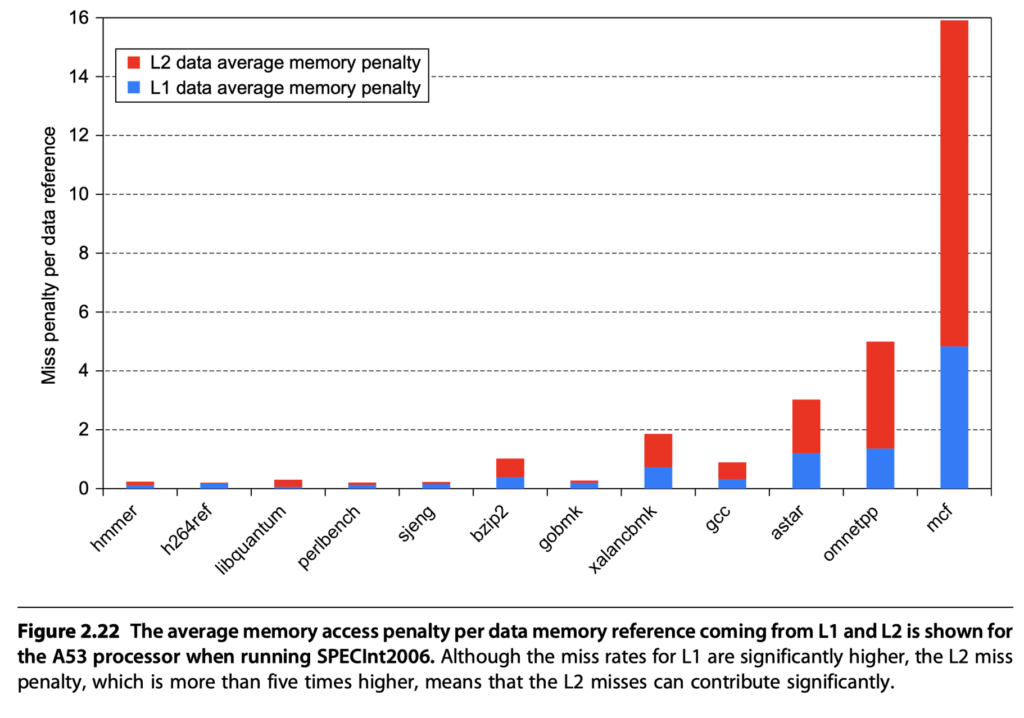

• Data cache miss and penalty?

---

The Intel Core i7 6700

• 64-bit extension of the 80×86 architecture
• OoO execution processor
• Four 80×86 instructions per clock cycle @ up to 4.0 GHz
  • Multiple issue
  • Dynamically scheduled
  • 16-stage pipeline
  • Two simultaneous threads per processor = simultaneous multithreading
• Memory support
  • Three memory channels
  • DDR3-1066 (DIMM PC8500)
  • Peak memory BW > 25 GB/s
• Virtual memory
  • 48-bit virtual addresses
  • 36-bit physical addresses
  • Max physical memory = 36 GiB

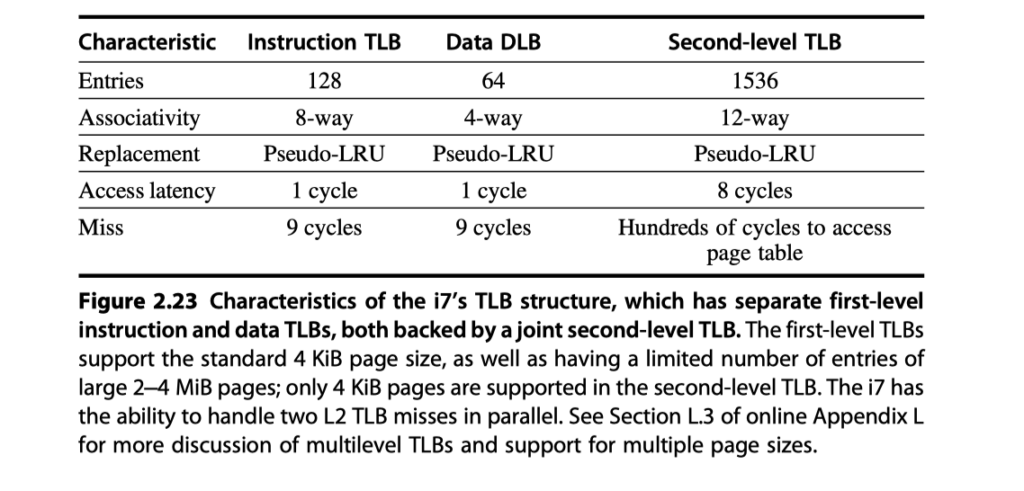

  • Two-level TLB

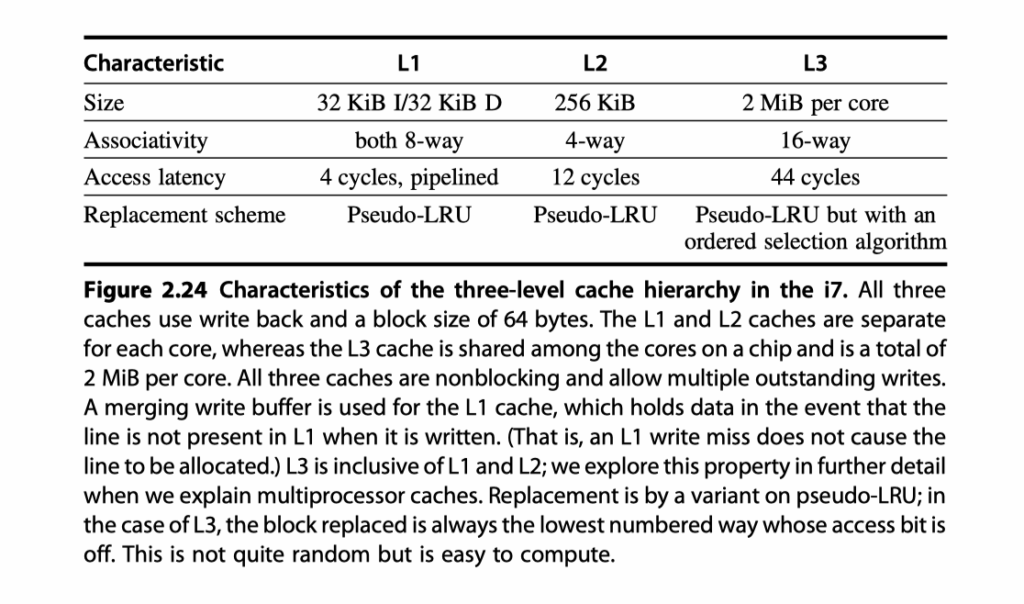

• L1 cache
  • Virtually indexed
  • Physically tagged
• L2 and L3
  • Physically indexed
• L4
  • Some version of i7 6700 use HBM as fourth level cache

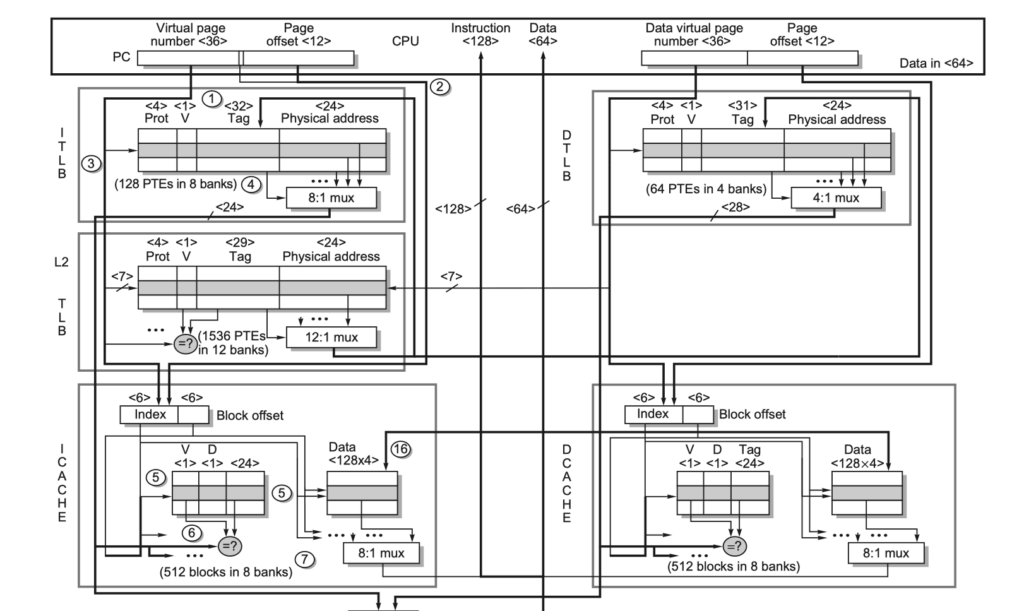

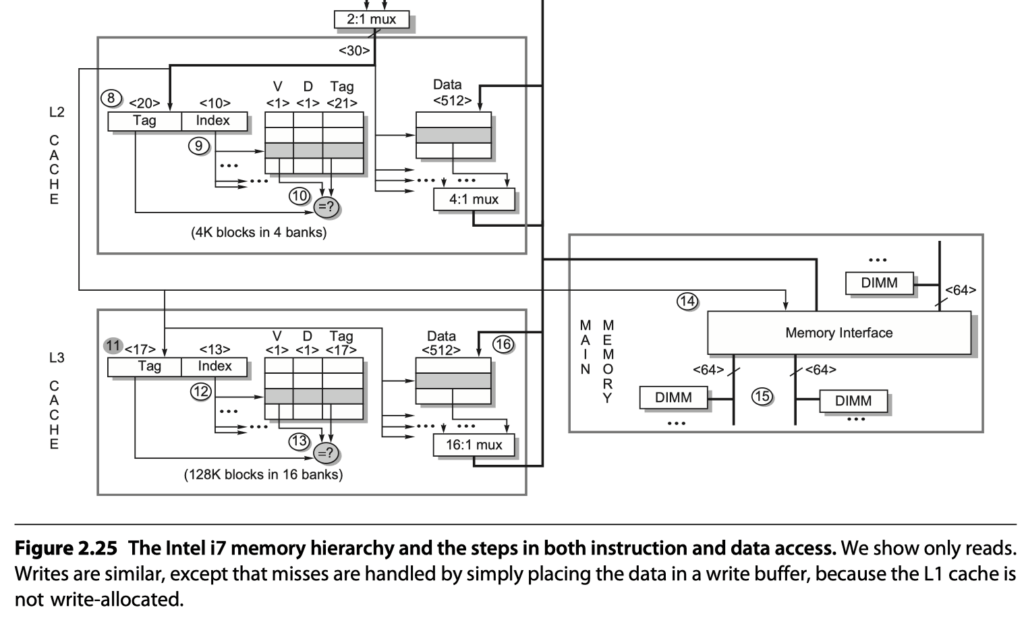

• Read page from 136 to for detailed explanation on
  • the memory access steps and
  • the performance related to
    • Autonomous instruction fetch
    • Speculation
    • Instruction prefetch and data prefetch

---

Reference

• Chapter 2 in Computer Architecture A Quantitative Approach (6th) by Hennessy and Patterson (2017)
• Valsan, Prathap Kumar, Heechul Yun, and Farzad Farshchi. “Addressing isolation challenges of non-blocking caches for multicore real-time systems.” Real-Time Systems 53 (2017): 673-708.
• Belayneh, Samson, and David R. Kaeli. “A discussion on non-blocking/lockup-free caches.” ACM SIGARCH Computer Architecture News 24.3 (1996): 18-25.
• Nonblocking cache from MIT lecture by Arvind (with Asif Khan)
• Memory hierarchy lecture from CMPUT429/CMPE382 Winter 2001 by J. N. Amaral

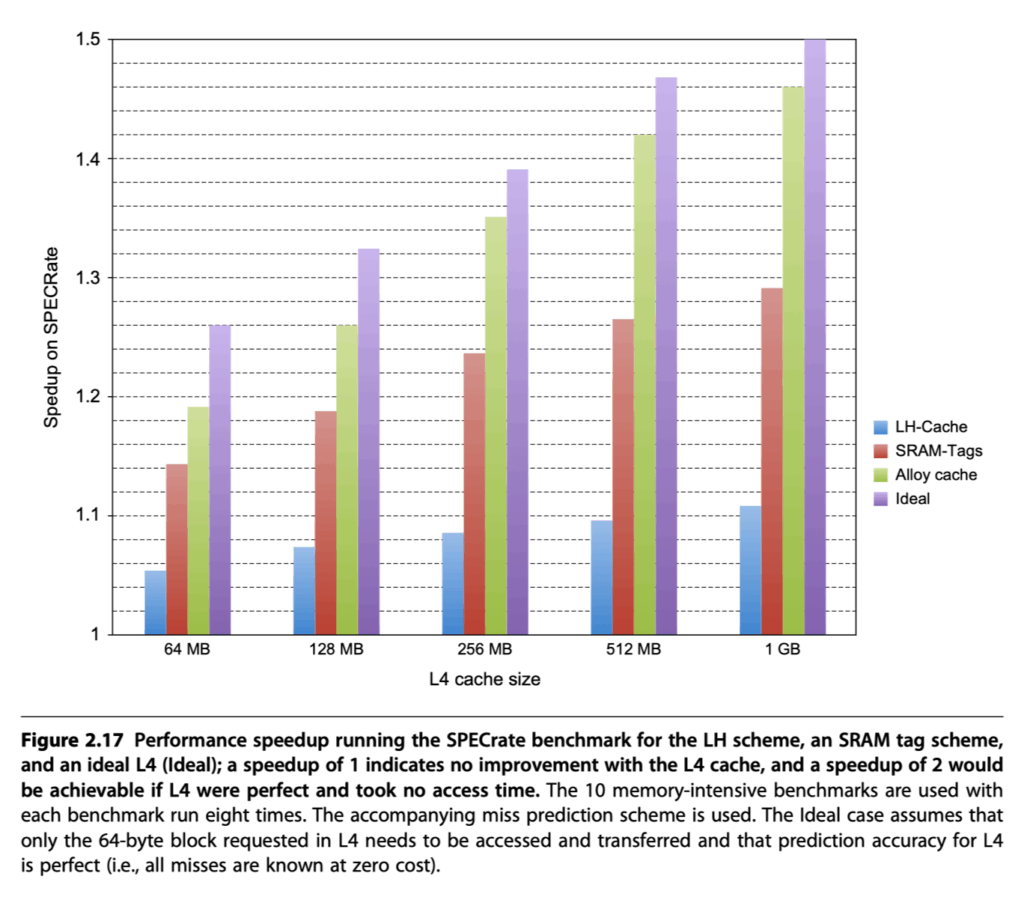

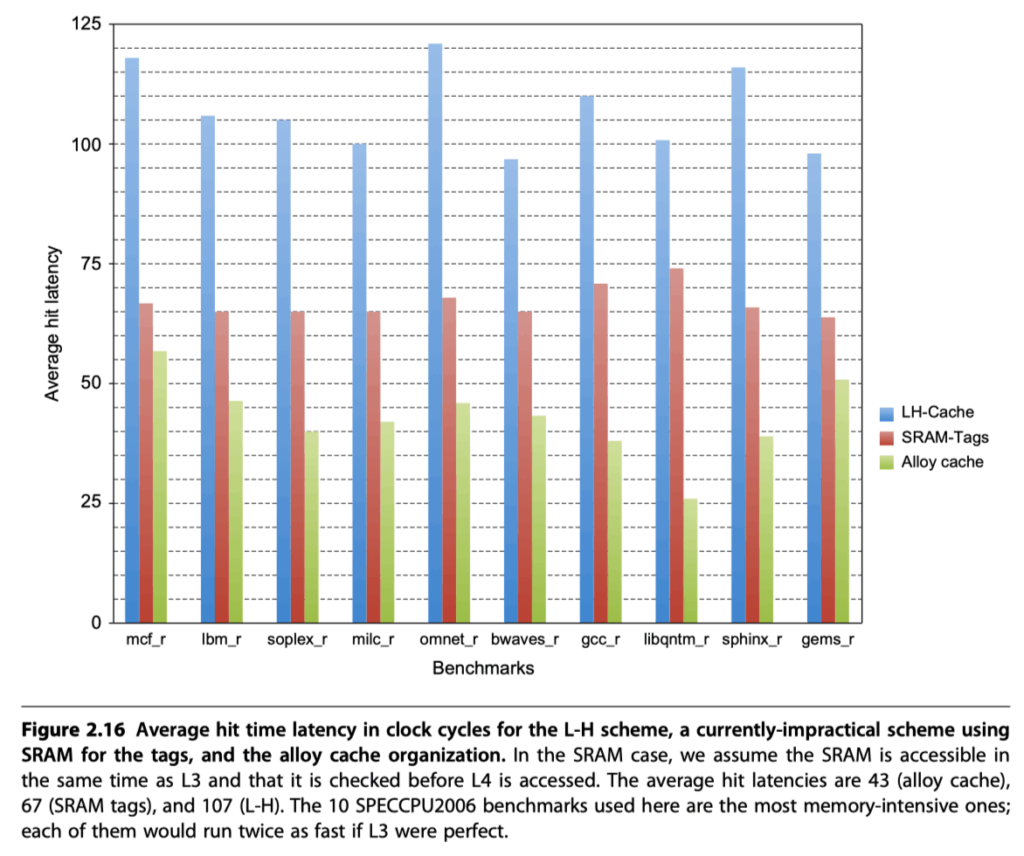

• Loh and Hill, “EFFICIENTLY ENABLING CONVENTIONAL BLOCK SIZES FOR VERY LARGE DIESTACKED DRAM CACHES” (2011)
• Quresh and Loh, “Fundamental Latency Trade-offs in Architecting DRAM Cache” (2012)
• VMware Ballooning by FRANKBRIX
• Virtualization and Cloud Computing Lecture 6: Memory Virtualization Techniques by Mythili Vutukuru
• CS250 VLSI Systems Design Lecture 8: Memory by John Wawrzynek, Krste Asanovic, with John Lazzaro and Yunsup Lee (TA), CS250, UC Berkeley, Fall 2010
• EE241 – Spring 2011 Advanced Digital Integrated Circuits Lecture 9: SRAM
